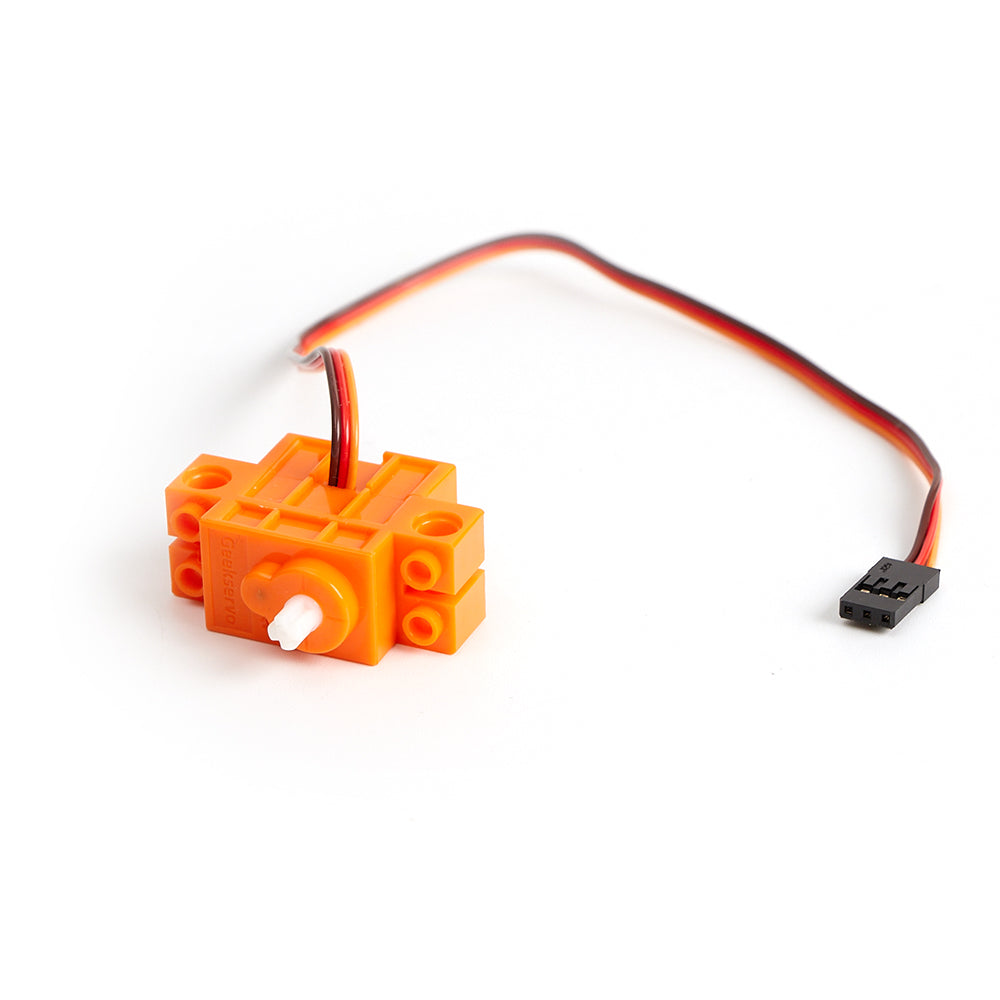

KittenBot Programmable Orange Geekservo 360 Servo compatiable with microbit, arduino
This is a small continuous servo compatible with Lego technic parts, the output axle is compatible with Lego technic axles. It is mainly used to drive wheels or gears.
This is a special servo because it can be used as a motor for boards that lack a motor driver, for example, IOBit. They can be controlled simply with IO pins.
Specifications
-
Operating Voltage: 3.3V~6V
-
Rated Voltage: 4.8V
-
Rated Current: 200ma
-
Blocked Rotor Current: 700ma
-
Slipping Current: 450ma
-
Maximum torque: 500g/cm(4.8V)
-
Maximum RPM: 70rpm
-
Weight: 12.4g
Geekservo Features
-
Clutch Protection:
-
In case of violent turning of the output axle, the clutch is enabled to protect the gears from damage.
-
-
Flexible Installation:
-
Can be mounted on standard Lego bricks or with Technic elements, providing a lot of possibilities for installation.
-
-
Small and lightweight:
-
Suitable for small robotic projects.
-
-
Does not require motor driver:
-
Suitable for expansion boards that lack a motor driver.
-
Dimensions:
In Lego units:
-
Length: 5
-
Width: 2
-
Height: 3
-
Output axle: Technic Axle
In mm units:
-
Length: 40mm
-
Width: 16mm
-
Height: 34.4mm
-
Output axle: Technic Axle
Connection
IOBit
Connect the servo to an Analog Pin of the IOBit.
Both 3V and 5V are supported. (However when using 5V power supply, only the P0 can be controlled; and have to make sure the buzzer is off, because they use the same pin)
Orange to Yellow, Red to Red, Brown to Black.
